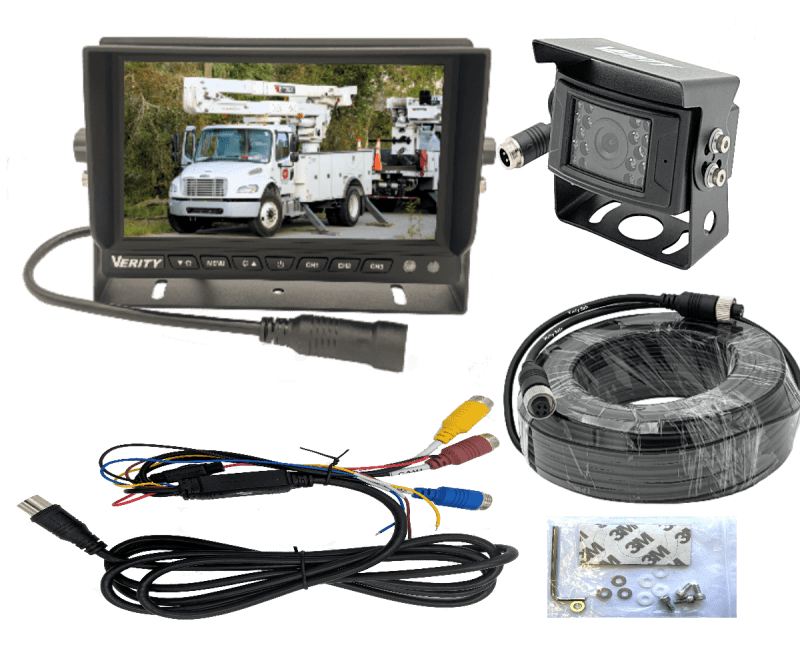

SM07S Complete S Series 7-inch Rear Vision System (w/ C001S Camera)

AUDIO + WATERPROOF + COLOR + NIGHT VISION + AUTO-DIMMING MONITOR SCREEN

• 7” HD Digital LCD screen with ultra-clear image in a durable housing, auto dimming, removable sunshield
• Supports up to 3 Verity cameras, built-in controller for trigger screen activation
• Clear sound speaker, easy to use advance operation menu, backlighted buttons
• Includes (1) C001S Standard Rear View, IP69K waterproof, 170° lens, color camera with night vision, (1) ADD21U heavy duty monitor mount, and (1) CB021 20m (65ft) camera cable.
• Built for the demands of commercial use at commodity pricing!

MONITOR SPECIFICATIONS

• Monitor Part # MK07S

• Screen size: 7-inch digital screen (16:9)

• High Resolution: 800 × 480 Pixel (RGB)

• System: PAL/NTSC Auto Select

• Contrast: 400:1

• Brightness: 300 cd/m2

• Power supply: DC 12V~24V with reverse polarity protection

• C °~80°Operation temperature: -30

• C°~70°Storage temperature: -20

• Monitor view angle: Horz. L (70) R (70) Vert. UP (50) DOWN (70)

• 3 camera inputs with shrink tube labeled trigger wires,

• Auto blue screen if no signal on the activated channel.

• Size: 180 x 120 x 25 mm.

• Weight: 418 g.

Features: Removable HD sunshade, LCD screen, LED blue light buttons, high-quality processor, in-line waterproof fuse, easy to use OSD menu function via buttons: reversing image delay time 0~10s, Mirror/Normal image, plus horizontal flip, multi-language.

CAMERA SPECIFICATIONS
(Camera Part #C001S)

• Horizontal Resolution: 600 TV Lines

• TV System: NTSC

• Image Type: 1/3 Inch Color CCD

• Effective Pixel: 510 x 492

• Illumination: 0 Lux (built-in 17 high output IR LEDs for night vision)

• Aluminum Housing

• Waterproof: IP69K (IP68K with microphone)

• Power Supply: DC 12V (powered from the monitor)

• Shockproof: 10G

• Operating Temperature: -40°~70°C

• Built-in Microphone

• Viewing Angle: 130° Horizontal
