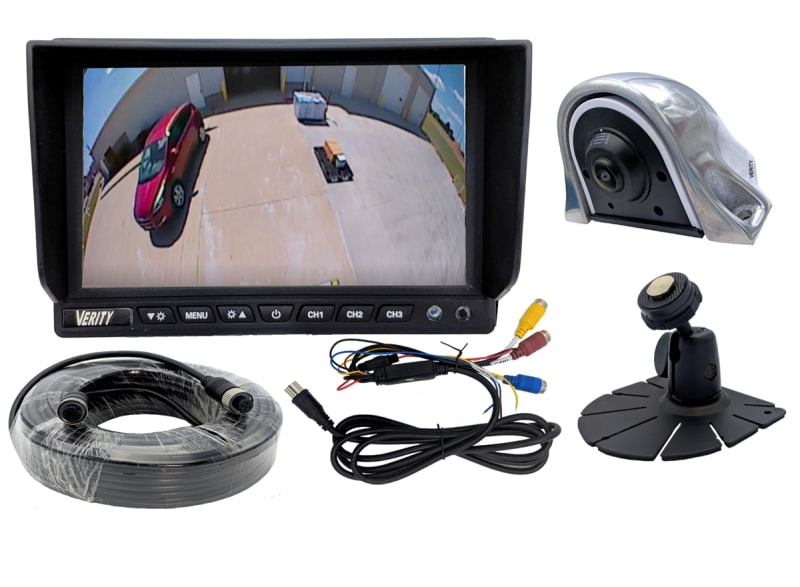

MONITOR SPECIFICATIONS(Monitor part #MK07S)Screen size: 7-inch digital screen (16:9)High Resolution: 1024 × 600 Pixel (RGB)System: PAL/NTSC selectableContrast: 400:1Brightness: 300 cd/m2Power supply: DC 12V~24V with reverse polarity protectionOperation temperature: -30°~80°CStorage temperature: -20°~70°CMonitor view angle: Horz. L(70) R(70) Vert. UP(50) DOWN(70)3 AV with shrink tube labeled trigger wires,Auto blue screen if no signal on the activated channel.Size: 7” (W) x 4 ¾” (H) x 2 ¾” (D) Weight: 14.7 ozFeatures: Removable HD sunshade, LCD screen, LED blue light buttons, high-quality processor, in-line waterproof fuse, easy to use OSD menu function via buttons: reversing image delay time 0~10s, Mirror/Normal image, plus horizontal flip, multi-language, high output speaker.
CAMERA SPECIFICATIONS(Camera Part #C001S)Horizontal Resolution: 600 TV LinesTV System: NTSCImage Type: 1/3 Inch Color CCD SONY (or equivalent)(no cheap off brands used)Effective Pixel: 976 (H) x 499 (V)Illumination: 0 Lux (built-in 17 high output IR LEDs for night vision)Aluminum HousingWaterproof: IP69KPower Supply: DC 12V (power from the monitor)Shockproof: 10GOperating Temperature: -40°~70°CBuilt-in MicrophoneViewing Angle: 170°
